PGSA2Z L298N Based Motor Driver Module – 2A
Original price was: ₹650.00.₹300.00Current price is: ₹300.00.
- Logical voltage: 5V
- Drive voltage: 5V-35V
- Logical current: 0-36mA
- Drive current: 2A (max. single bridge)
- Max power: 25W

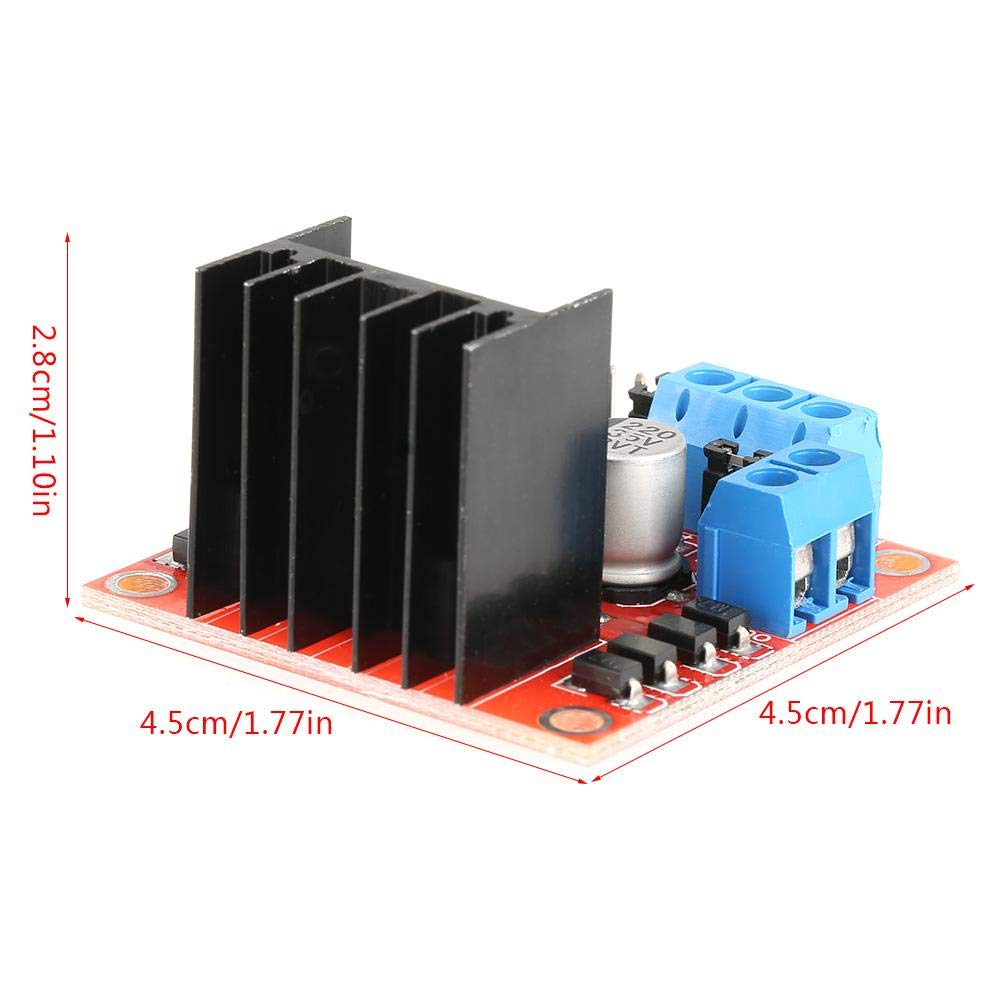

- Dimensions: 44 x 44 x 28 (L x W x H) mm
- If you have any quarry regarding this product please contact us
Out of stock
Out of stock
Email when stock available
- Pickup available at PGSA2Z OFFICE
- Usually ready in 24 hours
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 7277701092, or mail us at support@pgsa2z.com
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery}
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same).
DESCRIPTION

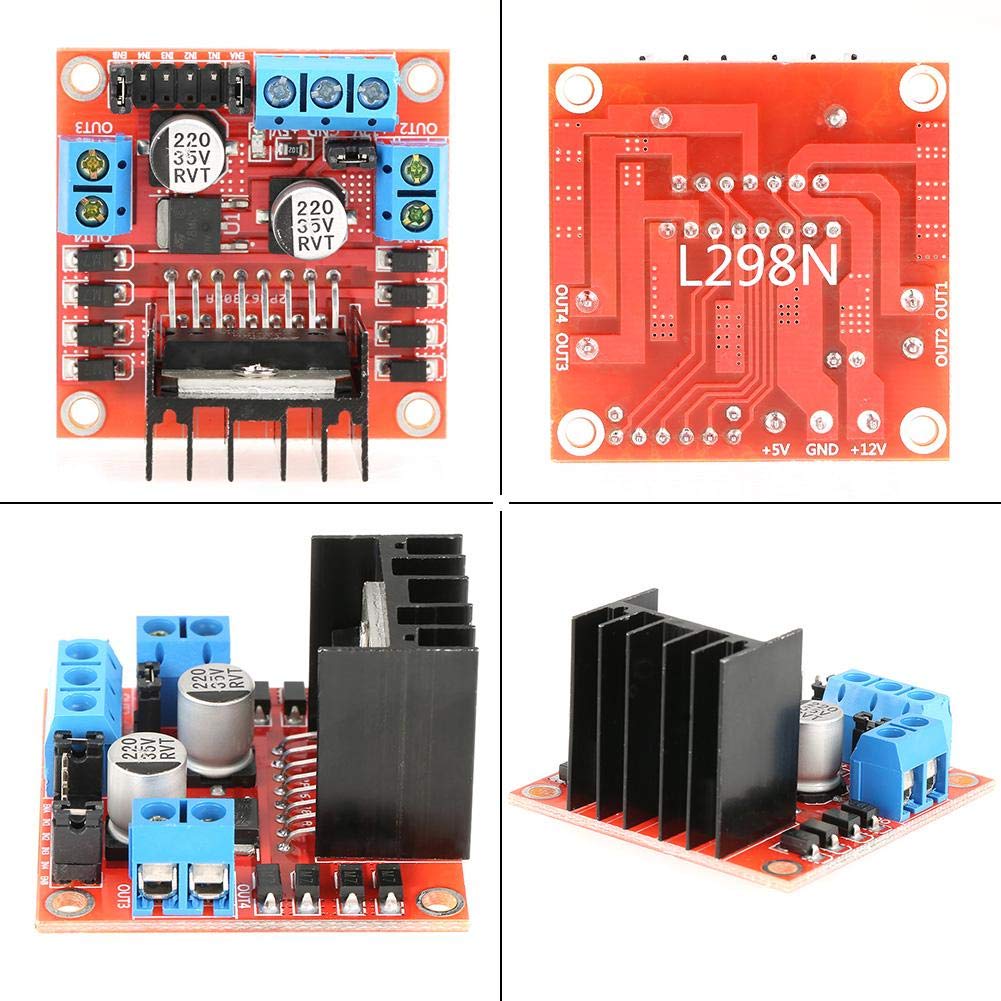

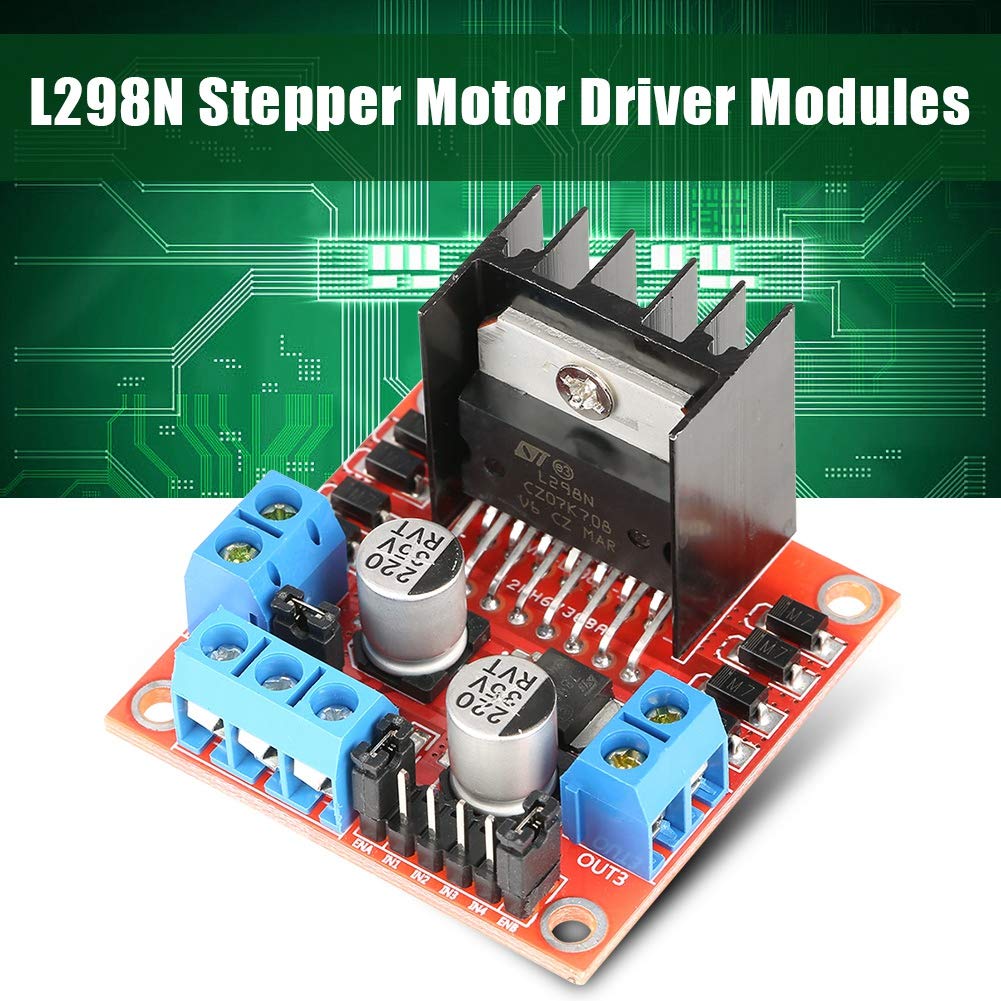

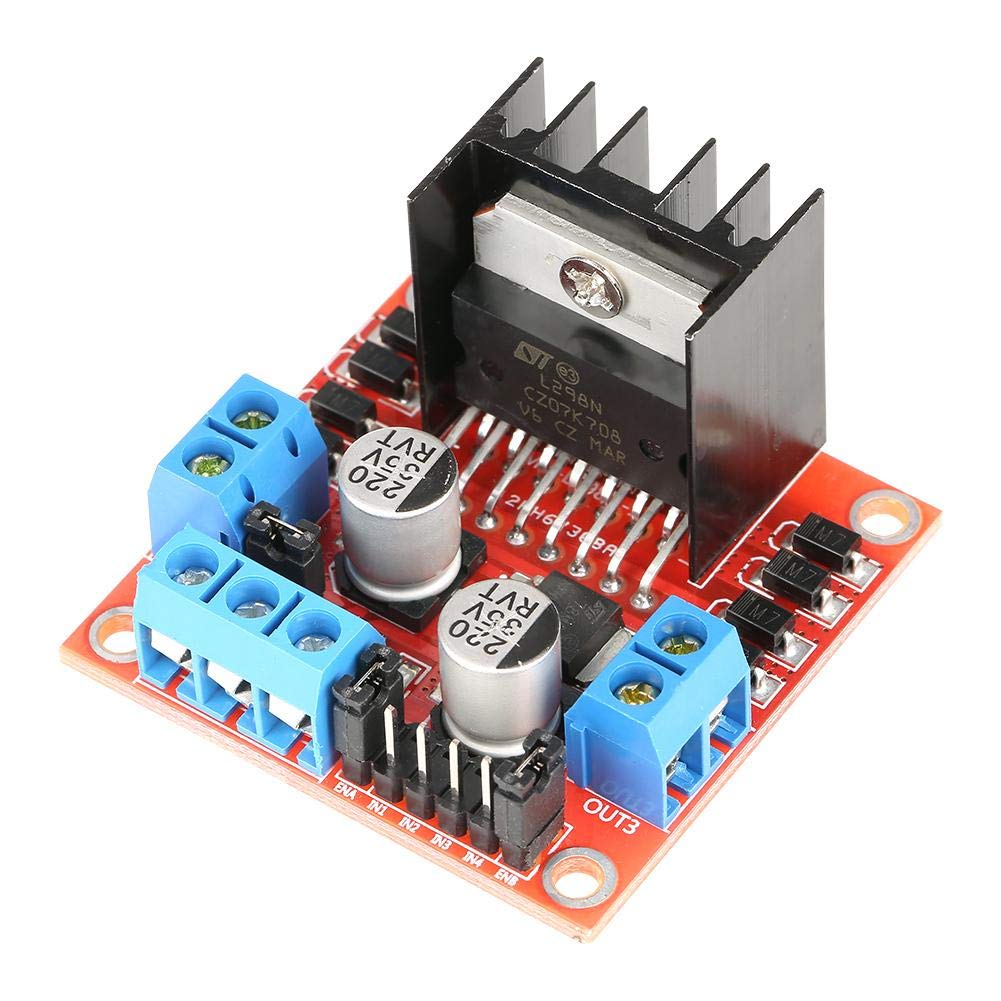

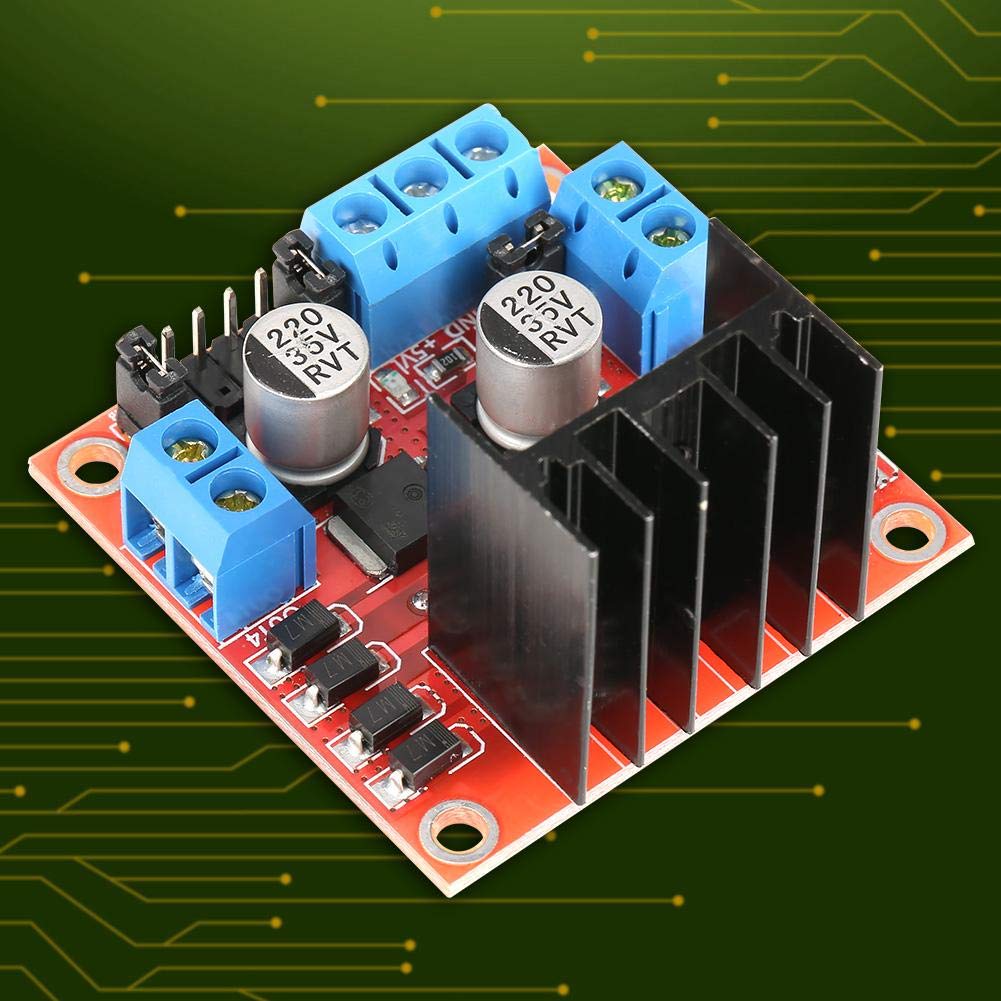

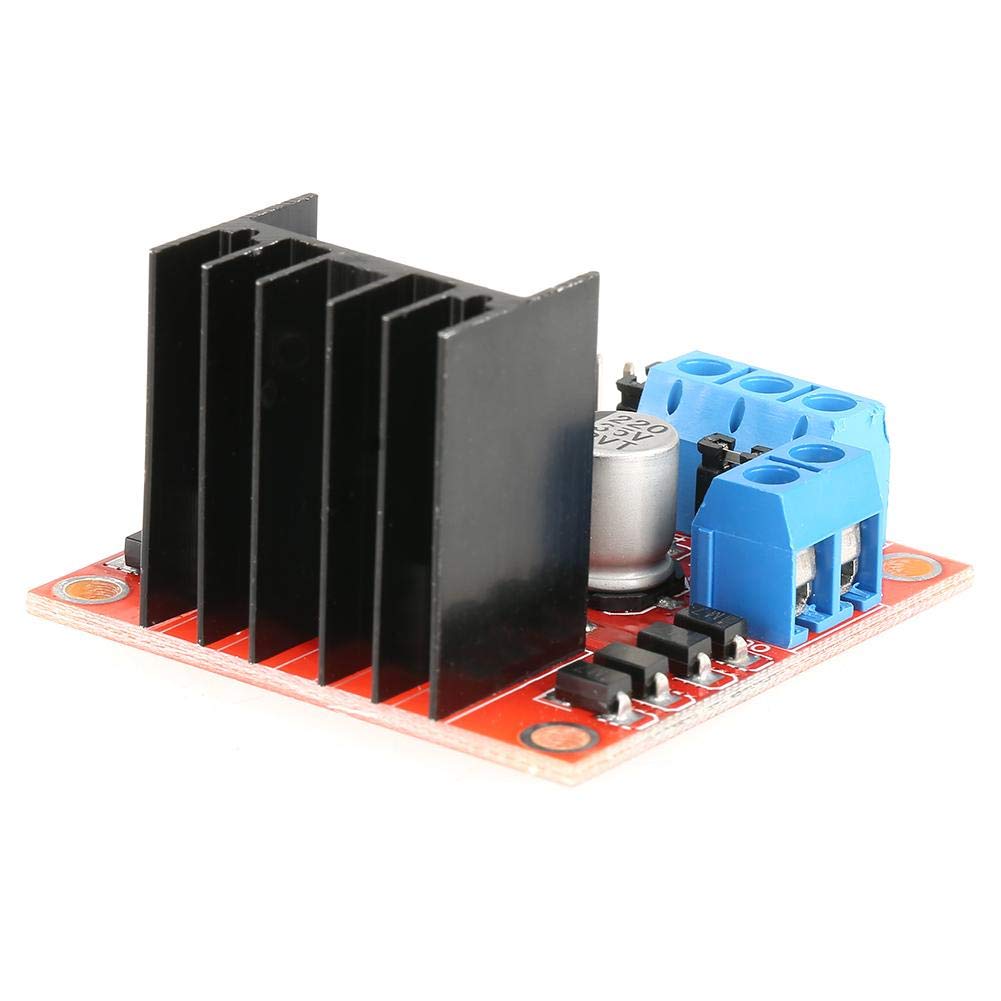

This L298N Based Motor Driver Module is a high power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular L298 motor driver IC and has the onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control. This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.
SPECIFICATION
| Driver Model | L298N |
| Driver IC | Double H Bridge L298N |
| Max Supply Voltage (V) | 46 |
| Mx Operating Current (A) | 2A |
| Logical Voltage | 5V |
| Driver Current | 2A |
| Logical Current | 0-36mA |
| Maximum Power (W) | 25W |
| Length (mm) | 44 |
| Width (mm) | 44 |
| Height (mm) | 28 |
| Weight (Kg) | 25 gm |
| Operating Voltage (VDC) | 5 ~ 35 |

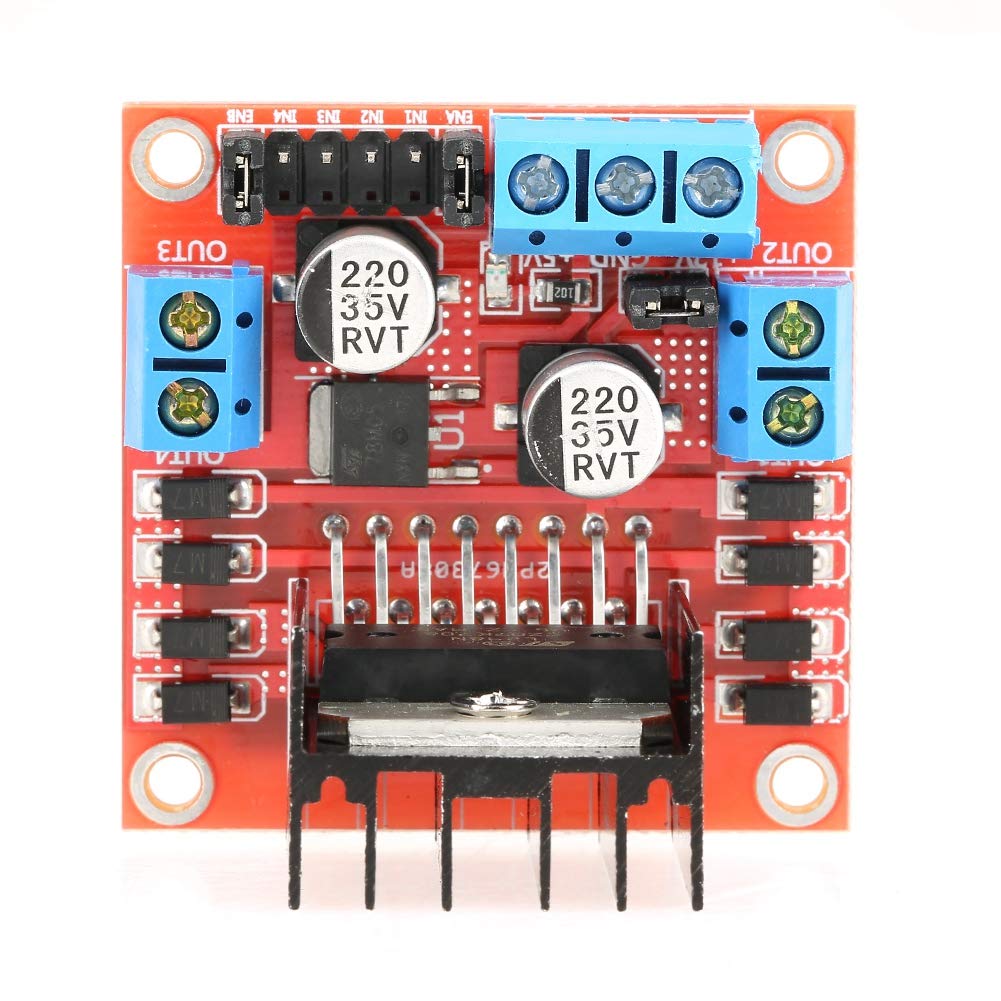

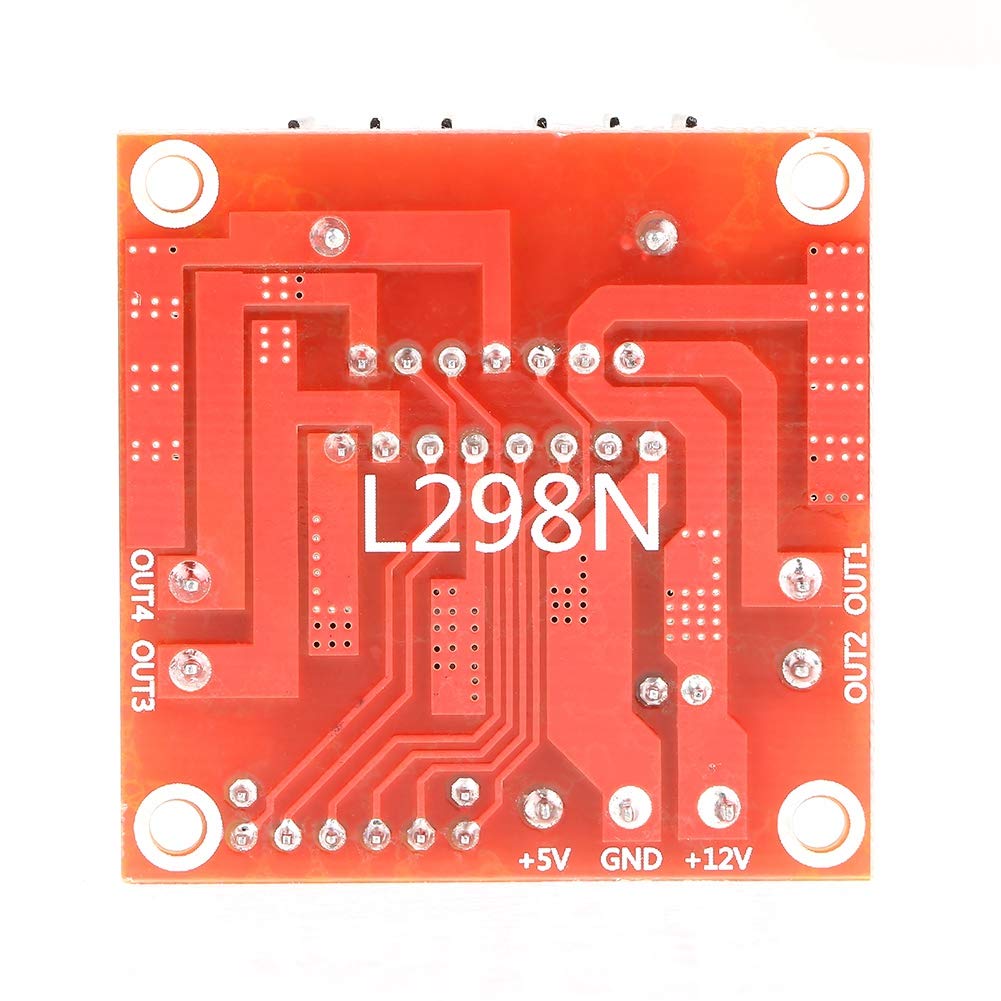

PINS
- Out1: Motor A lead out
- Out2: Motor A lead out
- Out3: Motor B lead out
- Out4: Mo (Can actually be from 5v-35v, just marked as 12v)
- GND: Ground
- 5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
- EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
- In1: Enable Motor A
- In2: Enable Motor A
- In3: Enable Motor B
- In4: Enable Motor
- EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section)
USAGE
- H-bridges are typically used in controlling motors’ speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.
PACKAGE INCLUDED
- 1 x L298N Motor Driver
