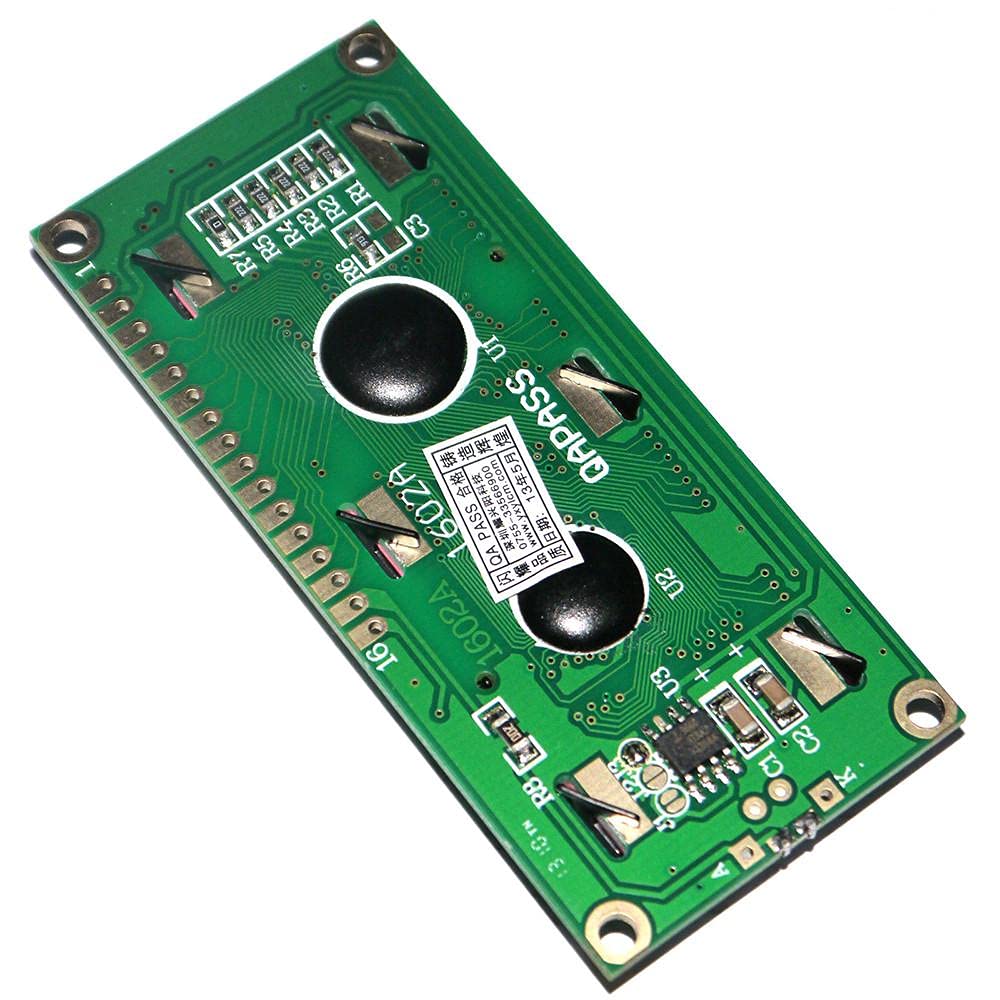

PGSA2Z LCD1602 Parallel LCD Display Blue Backlight

DESCRIPTION

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only little to display, the LCD1602 Parallel LCD Display is a quite good solution. This is LCD1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast white text upon a blue background/backlight. This is great blue backlight LCD display. It is fantastic for Arduino based project. This LCD1602 Parallel LCD Display with Yellow Backlight is very easy to interface with Arduino or Other Microcontrollers. The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

SPECIFICATION

• 16 characters wide, 2 rows.
• White text on the blue background.
• Single LED backlight included can be dimmed easily with a resistor or PWM.
• Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
• Supply voltage: 5V.
• Dimensions: 80 x 36 x 10 (L x W x H) mm.

PACKAGE INCLUDED

• 1 x LCD1602 Parallel LCD Display with Blue Backlight
