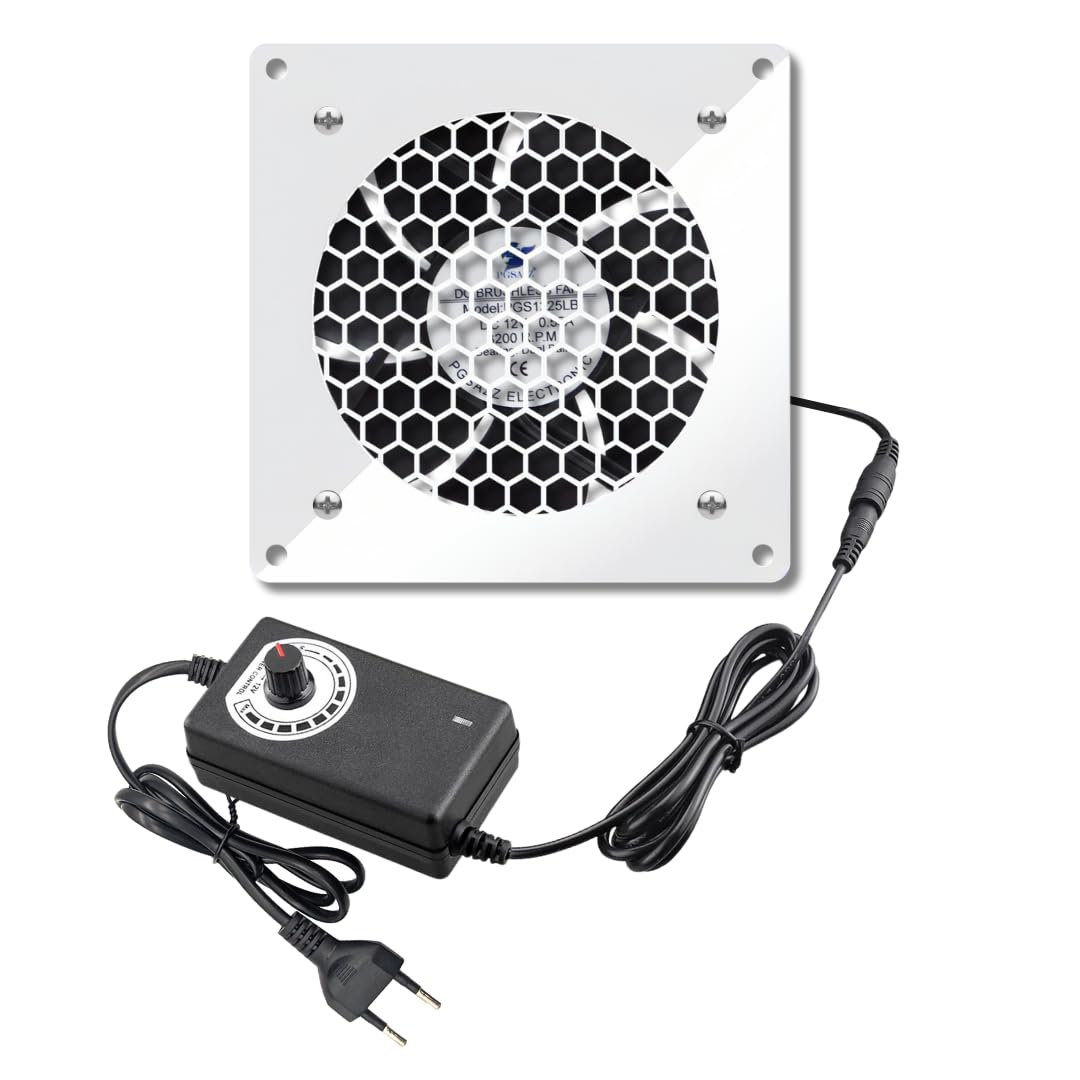

Cabinet Fan with AC Plug, 120mm, 120V/110V/220V, Variable Speed Controller, Axial Fan, 12V, for Electronics, PC Cabinet, Doorway, Receiver, Xbox, Home Theatre

This 120mm Cabinet Cooling Fan is a powerful and reliable ventilation solution designed for cooling electronic equipment and enclosed spaces. It comes with an AC power plug and adjustable speed controller, allowing you to control airflow and noise according to your needs. Ideal for PC cabinets, amplifiers, home theater systems, gaming consoles, receivers, cabinets, RV appliances, and electronics enclosures.

Key Features

• Variable Speed Control: Easily adjust fan speed or turn the fan ON/OFF using the inline controller

• High Airflow Performance: Delivers strong airflow for efficient heat dissipation

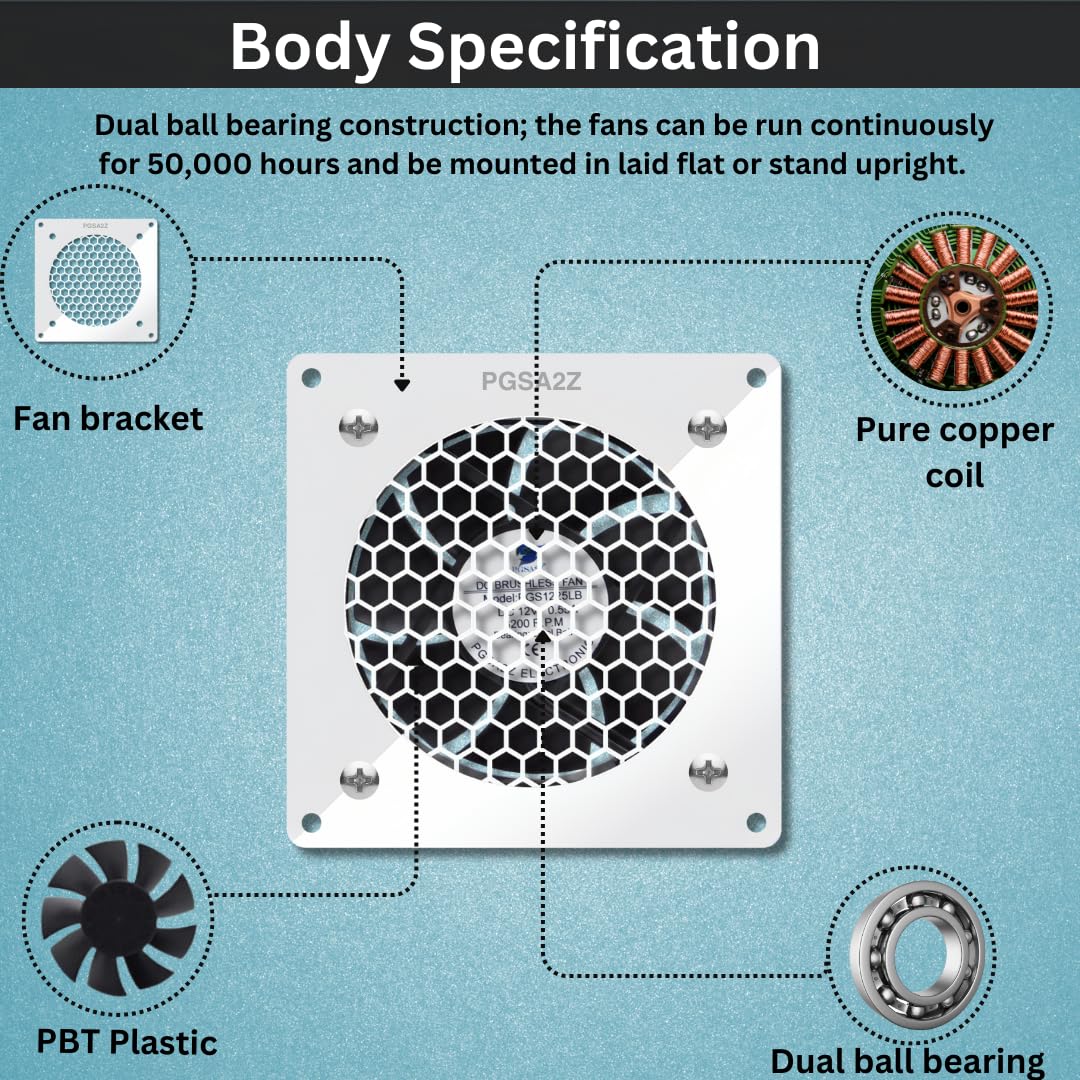

• Dual Ball Bearing: Long service life up to 50,000 hours, suitable for continuous operation

• Quiet Operation: Optimized for low noise while maintaining high cooling efficiency

• AC Powered: Plug-and-play operation, no additional power supply required

• Durable Build: PBT plastic fan blades and pure copper motor coil

• Flexible Mounting: Can be mounted flat or upright

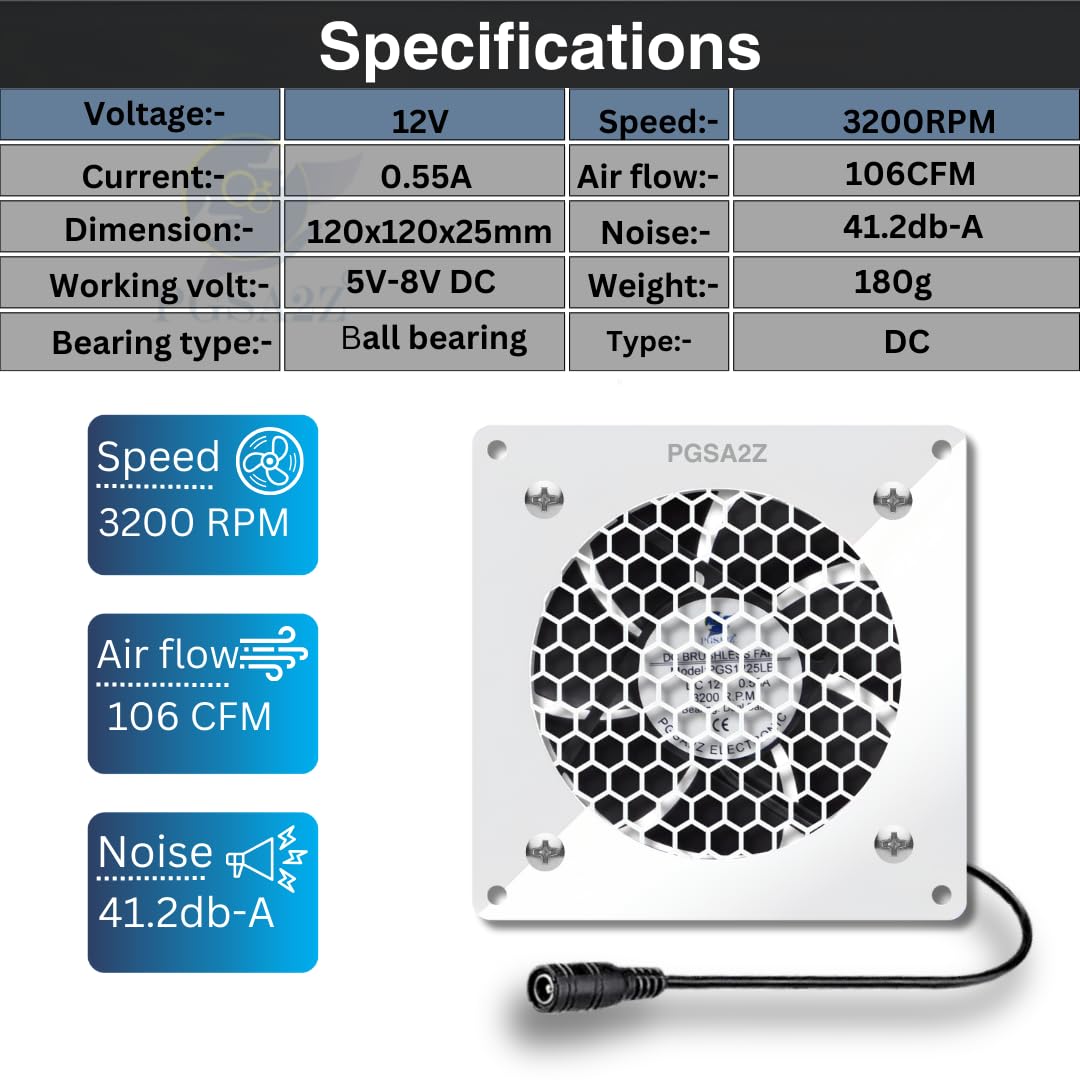

Technical Specifications

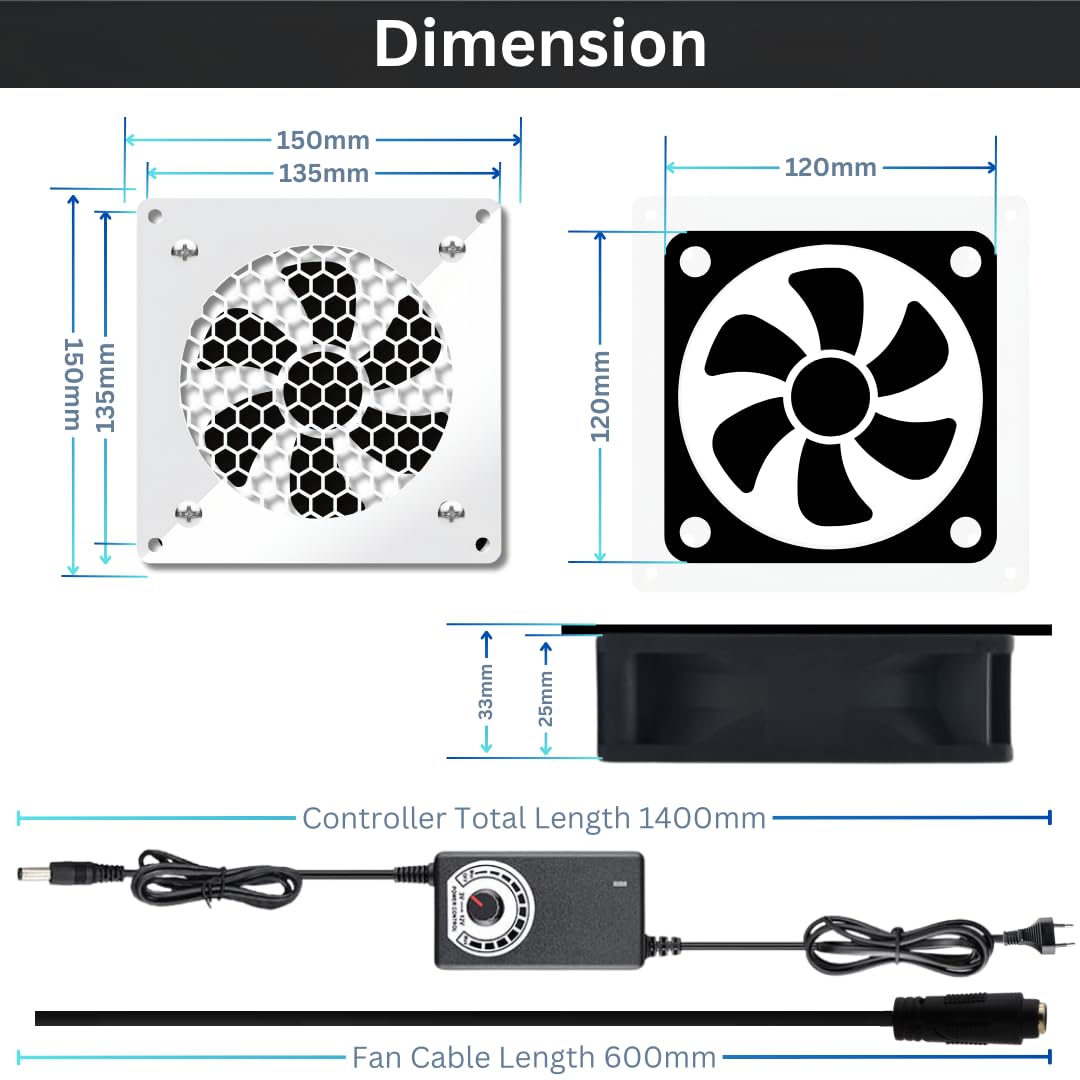

• Fan Size: 120 × 120 × 25 mm

• Rated Voltage: 12V DC (via AC adapter)

• Input Voltage: 110V / 120V / 220V AC

• Current: 0.55A

• Fan Speed: Up to 3200 RPM

• Airflow: 106 CFM

• Noise Level: 41.2 dB-A

• Bearing Type: Dual Ball Bearing

• Motor Type: DC Brushless

• Weight: Approx. 180 g

• Connector Size: DC 5.5 × 2.1 mm

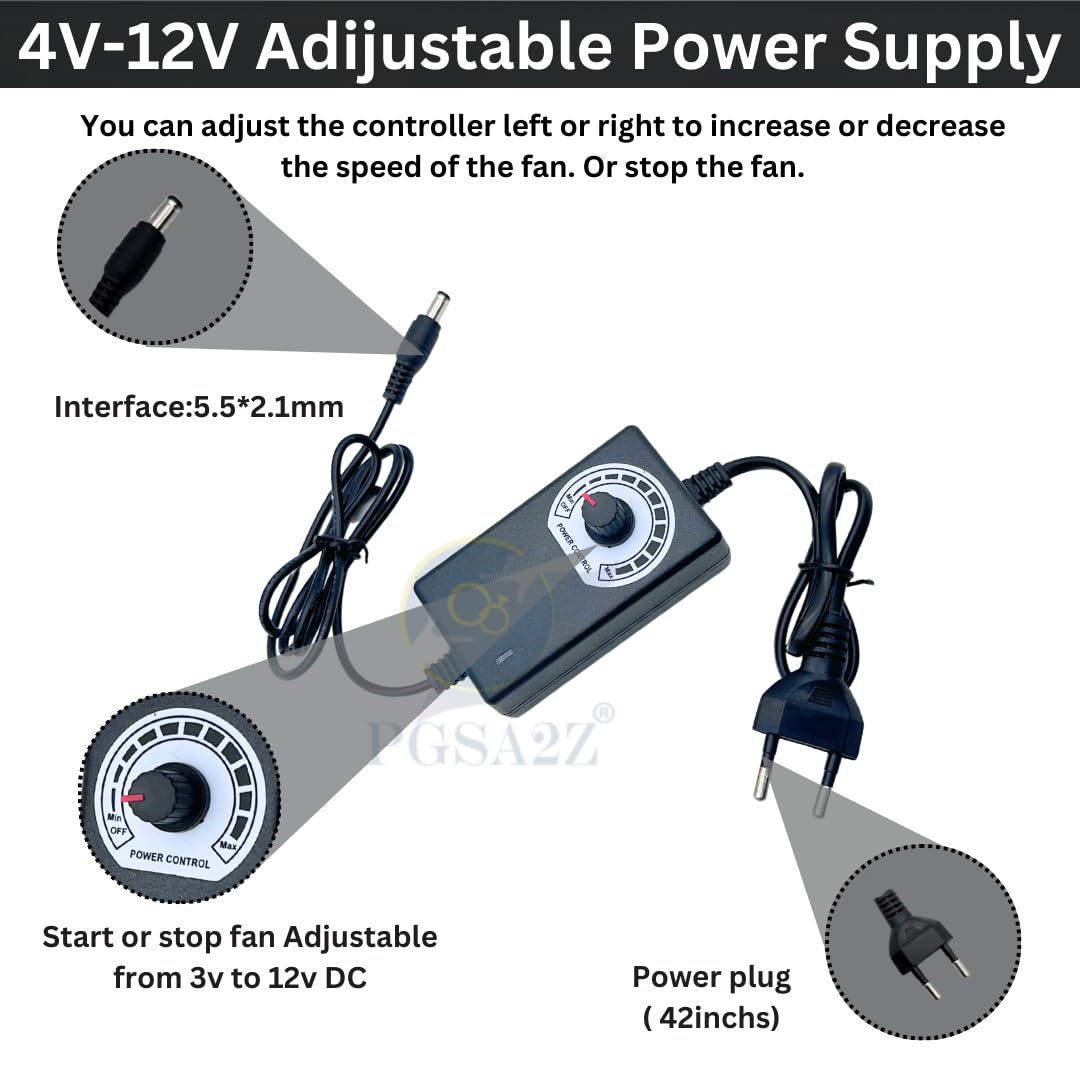

Power & Controller Details

• Adjustable Voltage Range: Approx. 3V – 12V DC

• Controller Cable Length: 1400 mm

• Fan Cable Length: 600 mm

• Power Plug Length: Approx. 42 inches

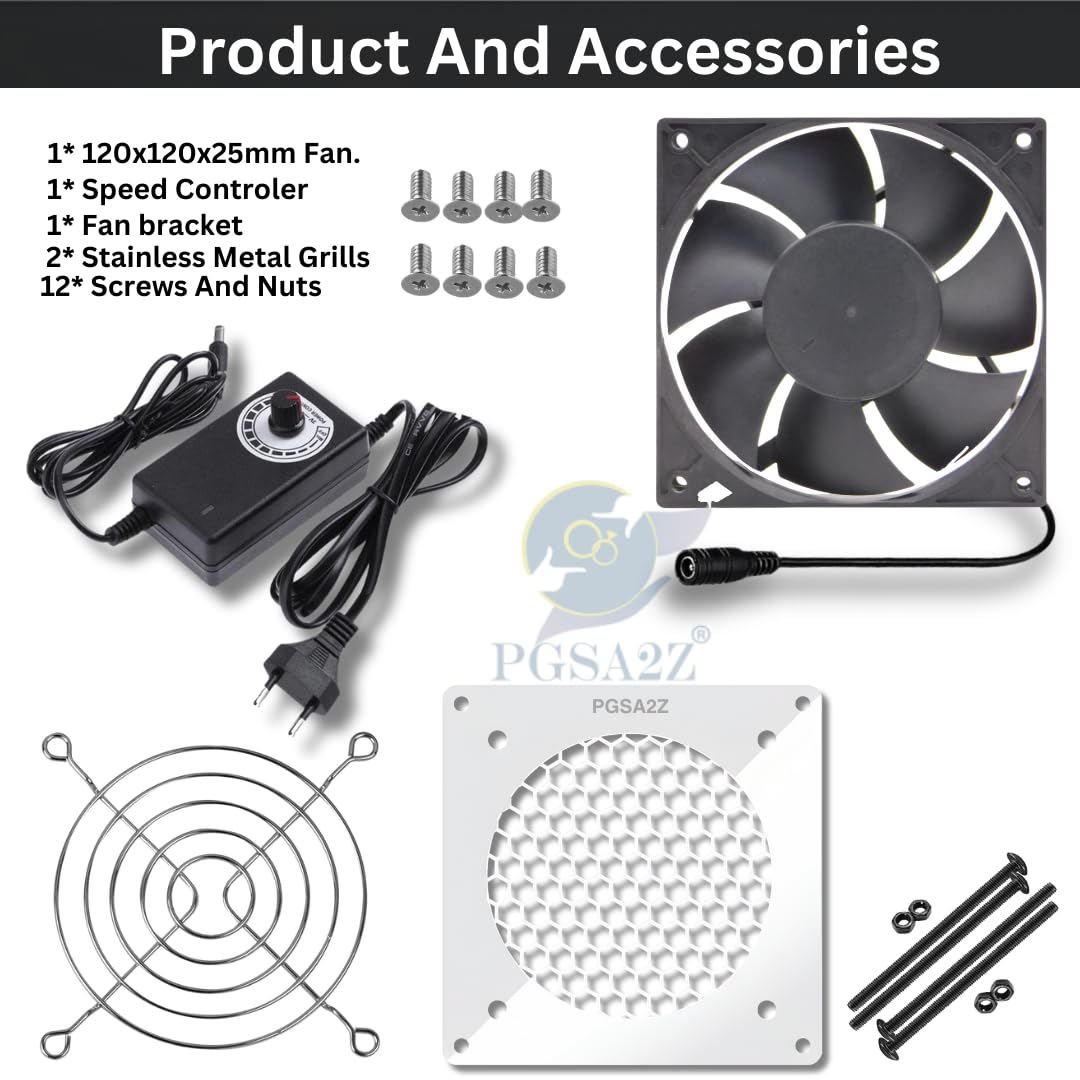

Package Contents

• 1 × 120mm DC Brushless Cooling Fan

• 1 × Variable Speed Controller with AC Plug

• 1 × Fan Mounting Bracket

• 2 × Stainless Steel Metal Grills

• 12 × Screws and Nuts

Applications

• PC Cabinets & Power Supplies

• Home Theater & Audio Amplifiers

• Gaming Consoles (Xbox, receivers, media players)

• Electronic Cabinets & Enclosures

• RV Refrigerator & Camper Appliances

• Ice Makers & Quartz Heaters

• Laptops & DIY Cooling Projects
