PGSA2ZHC-05 Wireless Bluetooth RF Transceiver Master Slave Integrated Bluetooth Module 6 Pin Wireless Serial Port Communication BT Module
Original price was: ₹750.00.₹490.00Current price is: ₹490.00.
- Bluetooth protocol: Bluetooth Specification v2.0+ED.
- Frequency: 2.4GHz ISM band
- Modulation: GFSK(Gaussian Frequency Shift Keying)
- Emission power: =4dBm, Class 2
- Sensitivity: =-84dBm at 0.1% BER
- If you have any quarry regarding this product please contact us
5 in stock
5 in stock
- Pickup available at PGSA2Z OFFICE
- Usually ready in 24 hours
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 7277701092, or mail us at support@pgsa2z.com
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery}
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same).
DESCRIPTION

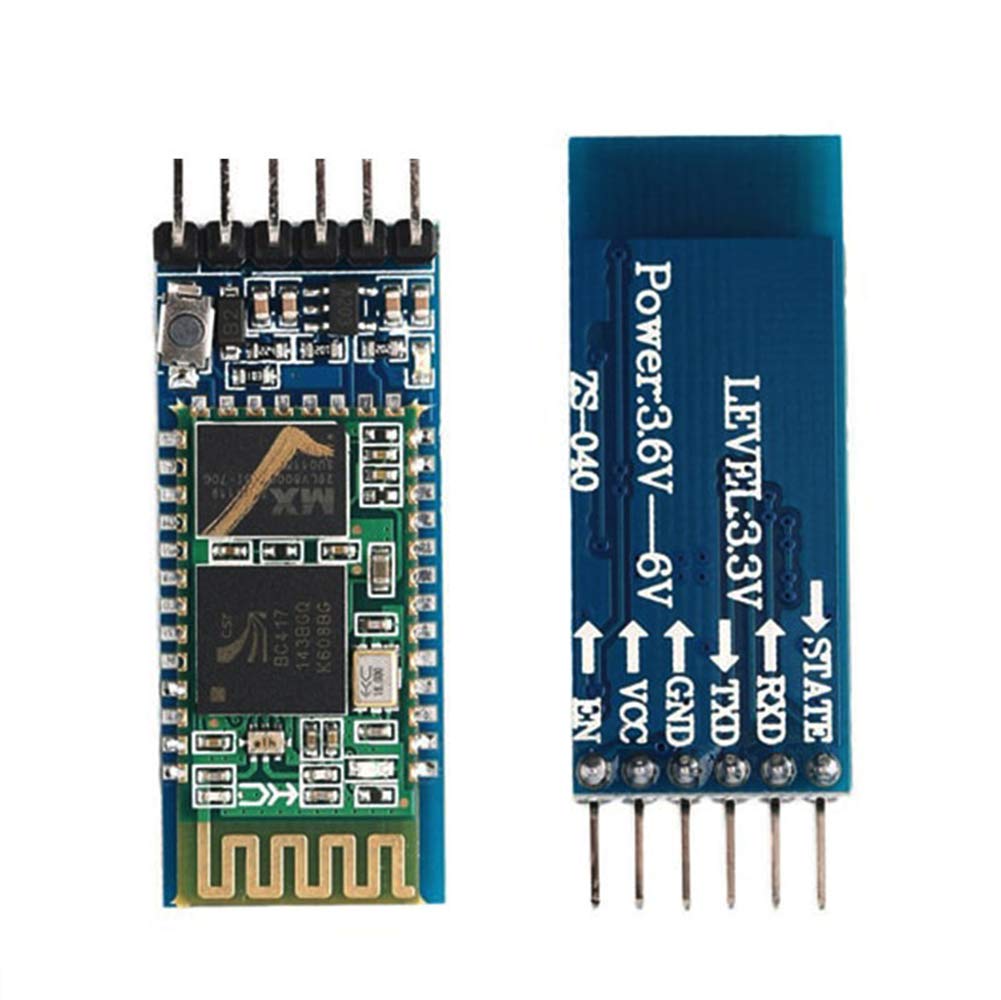

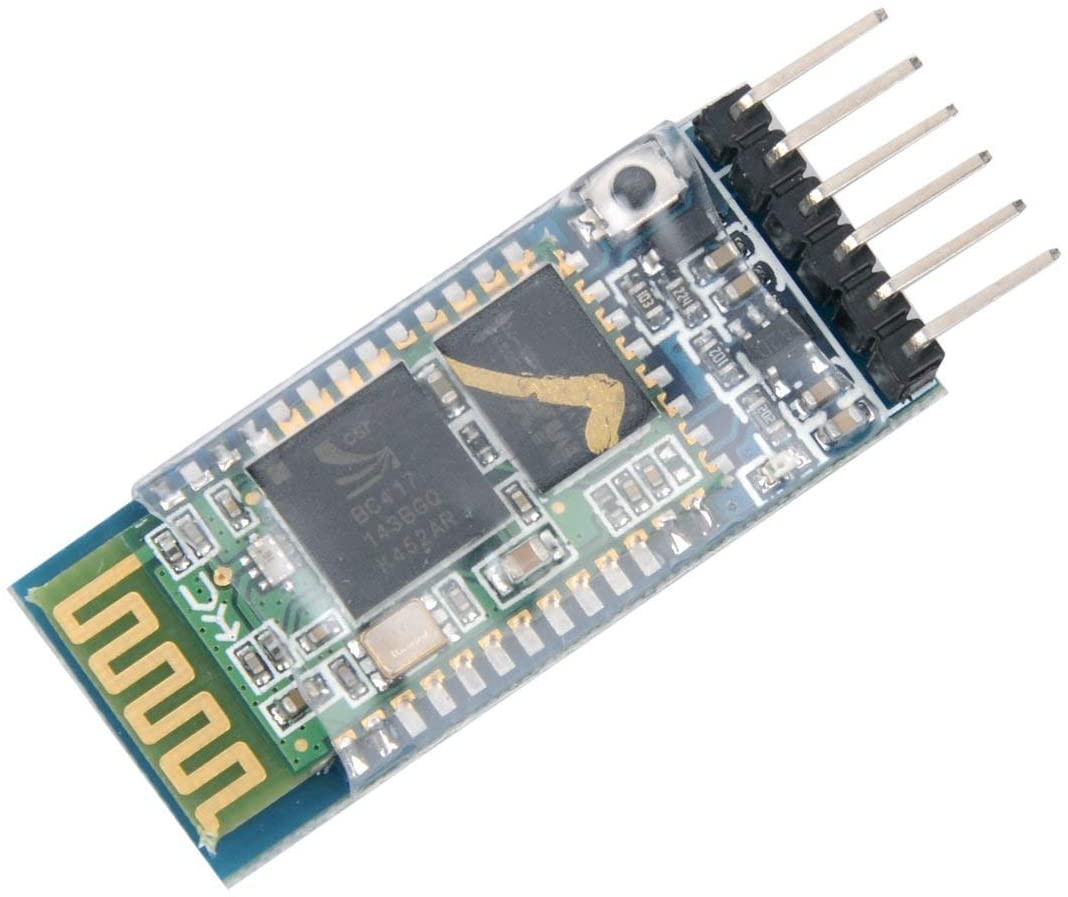

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
SPECIFICATION
| Input Supply voltage (V) | 3.6 ~ 6V |
| Input current (mA) | 50mA |
| Maximum Operating Range (m) | 10 |
| Operating Frequency | 2.4GHz ISM band |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Emission power | 4dBm, Class 2 |
| Sensitivity | -84dBm at 0.1% BER |
| Operating Temperature (℃) | -20 ~ +75 |
| Length (mm) | 43 |
| Width (mm) | 16.5 mm |
| Height (mm) | 7 mm |
| Weight (gm) | 5 mm |
FEATURES
- Working current: matching for 30 mA, matching the communication for 8 mA.
- Dormancy current: no dormancy.
- Used for a GPS navigation system, water, and electricity gas meter reading system.
- With the computer and Bluetooth adapter, PDA, seamless connection equipment.
- Bluetooth module HC-08 Master and slave Two in one module.
- Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
- Potter default rate of 9600, the user can be set up.
- Bluetooth protocol: Bluetooth Specification v2.0+EDR
- Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
- Security: Authentication and encryption.
- Profiles: Bluetooth serial port.
APPLICATION
- Embedded Projects.
- Industrial Applications.
- Computer and Portable Devices.
- GPS receiver.
PACKAGE INCLUDED

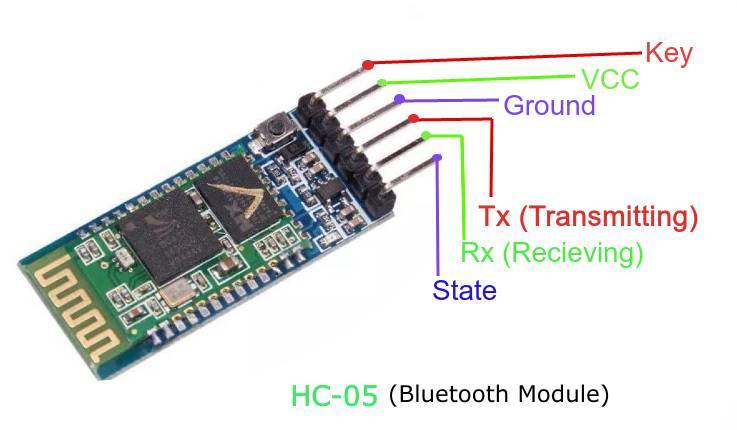

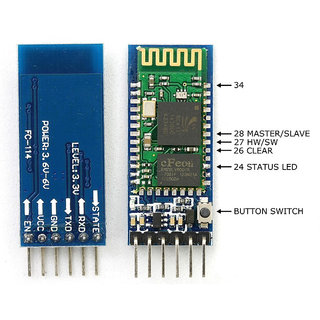

- 1 x HC-05 6pin Bluetooth Module with Button
